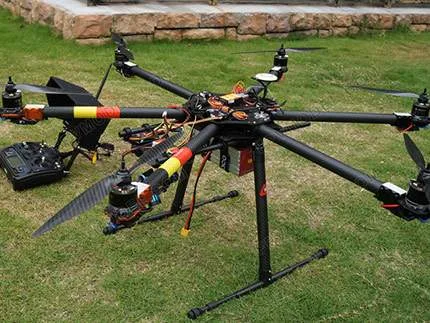

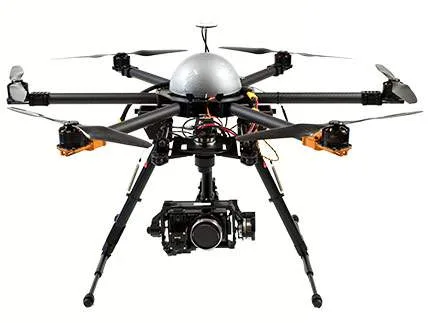

TAROT T960
Specifications
Frame weight : 1050g
Arms diameter : 25mm
Drone dia : 960mm
End to end : 1000mm

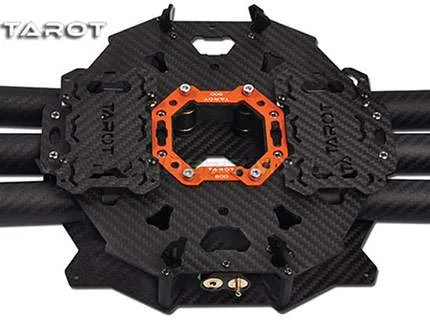

Center body dimension : 210 x 210 x 2.0mm
Drone’s weight (everything it needs to fly) : around 4.3kg

Our Flight Reference
Battery Supply : 6S 22.2V, 5500mah for 8 minutes, 12000mah for 15 minutes

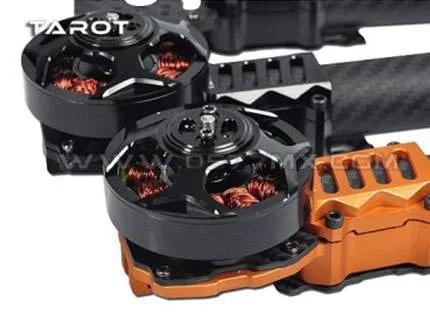

Motor : Tarot 5008 340kv Motor , mt 5210
ESC : 30A-OPTO or 40A-OPTO
Propeller : Tarot 1855 Propellers Max 18
Flight Controller : NAZA V2 / DJI WooKong / DJI A2

Radio Set : Futaba 8FG we used 8-ch receiver
Carrying : Brushless Motor Gimbal, TS352 FPV System, GoPro Hero 3 (They weight about 700g
Remarks : Remember to use BEC module to power up the Flight Controller (11.1V) and Receiver (5V) since you are using 22.2V battery pack, and get some extra electric cables, JST plugs, T-Join or XT60 plugs to connect the drone
